Speel Praha s.r.o.

AIRBORN MONITORING SYSTEMS "AMOS"

Airborne data server (AMOS) by SPEEL PRAHA Ltd. company is designed to:

• Gather, process, and record information about airborne systems of the light combat aircraft L159 with the goal to offer the pilot information about the instant aircraft situation including warnings when the limit values are reached
• Watch and monitor the load on the airframe in the long term
• Record data for air crash evaluation
• Watch and monitor the health state of the pilot

The AMOS system consists of the following two parts:

• Cockpit units:

-  FDAU159CAF unit for reading data
-  FSP159CAF functional signal panel
-  CMU159CAF crash data recorder

• Ground units that are designed to maintain AMOS system and ensures:

-  Testing of the AMOS system state
-  Calibration of the AMOS system
-  Transfer and evaluation of the AMOS system data

AIRBORNE DATA SERVER "AMOS-B"

Airborne data server (AMOS-B) by SPEEL PRAHA Ltd. company is designed to:

• Gather, process, and record information about selected airborne systems of the two-seat jet aircraft L159B with the goal to offer the pilot information about the instant aircraft situation including warnings when the limit values are reached
• Watch and monitor the load on the airframe in the long term
• Record and protect the data designed to evaluate the air crashes
• Watch and monitor the health state of the pilot
• Guide the operator (i.e. the pilot or an engineer) during a preflight preparation of the aircraft using the sequence of defined tasks
• Display a help during evaluation of critical events like tools for effective usage of the data recorded during the pilot's training

AIRCRAFT MONITORING SYSTEM "PMS 39"

PMS39 consists of:

• Cockpit unit

- Central measuring and control unit MU39 for data collecting and processing
- Crash data recorder with protected solid-state service and back-up memory ZJ39 where records are written to both memories simultaneously

• Ground unit

- PMS system testing
- Calibration of sensors of physical quantities on the aircraft
- The PANDA program system with corresponding configuration of GEE and GSU is designed for monitoring and evaluation of registered PMS flight parameters from the ZJ39 record unit
- It is possible to read data from ZJ39 either directly to GSU (interface RS-232C) or using the PMU-F (interface RS-422) portable memory unit without dismounting ZJ39
- Harmonic analysis of aircraft engine vibrations

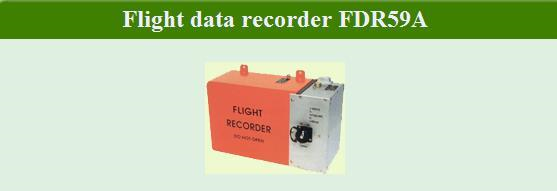

• FDR59A
• FDR59B-AN
• FDR39H/HG/HGM
• FDR39HL/HLG
• FDR39TM-E/TMG
• FDR59B-H/B-L
• ZJ39
• CMU159CAF
• CVFDR
• CARE

• AMU
• ELM 601
• TCI
• ADC - 159
• AIR MIS
• OAT.X

• DMU
• PMU TURBO
• GEE
• CRRU
• GSU
• MDAW 159

Software set PANDA (Prostredky ANalyzy DAt) is an universal evaluation system designed to process, evaluate, and analyse data records from the following flight data recorders, monitoring systems and portable memory units:

• FDR recorders
• TESTER recorders
• BUR recorders
• PARES recorders
• PMS monitoring systems
• AMOS monitoring systems
• PMU portable memory units
• other flight data recorders

PANDA system is developed in these two versions:

DOS version for MS-DOS consists of SW59A software and TEST-L evaluation system. It is verified and well-established software system.

WINDOWS version for WINDOWS operating system.

The main characteristics of PANDA software:

• Integrability - PANDA software guarantees the possibility to integrate all FDR recorders and many of other recorders which repeatedly send recorded data in blocks. This way, data from all types of recorders can be processed by one evaluation system. Another advantage is that the evaluation software works under one user environment (according to the used operating system) and the user does not have to master various evaluation software sets.
• Modularity - PANDA software has modular character which means that consists of program modules which insure functionality of their parts of PANDA software set. The majority of modules could be used separately which increases the variability of the system
• Extensibility - new program modules could be integrated into the PANDA (e.g. monitoring the service lifetime of an engine or an airframe). The new modul must fulfil all conventions used in the PANDA system.
  The module listings corresponding to a choosen recorder or aircraft are presented at the page Configuration of PANDA modules.

The modules that use PANDA data files provides only SPEEL PRAHA Ltd. company on grounds of order.
PANDA software set is an universal evaluation system that makes possible to process, evaluate and analyse the data from flight data recorders and monitoring systems.

PANDA software set consisting of several program modules perform following basic functions:

• Copy the data form flight data recorders (monitoring systems) and PMU into the ground workstation
• Compute, store, and actualize calibration data used for translation analog values to physical quantity
• Graphically display history of paremeters' values
• Process data using the user defined analyses
• Administer the PANDA databases
• Back up and export data
• View the aircraft silhouette in space
• Display the flight trajectory
• Display the flight trajectory over the map
• Display the flight instruments

Software modules can be divided into three groups by the reference to the recorder:

• Modules depending on the used recorder (e.g. LOAD, CALB)
• Universal modules (e.g. EDIT, COMP, VIEW)
• Special modules (e.g. FRAME)
